T7-211E1 Otto Water Resistant Double Momentary Toggle Switch, Spring Return To Center Off Position

Product

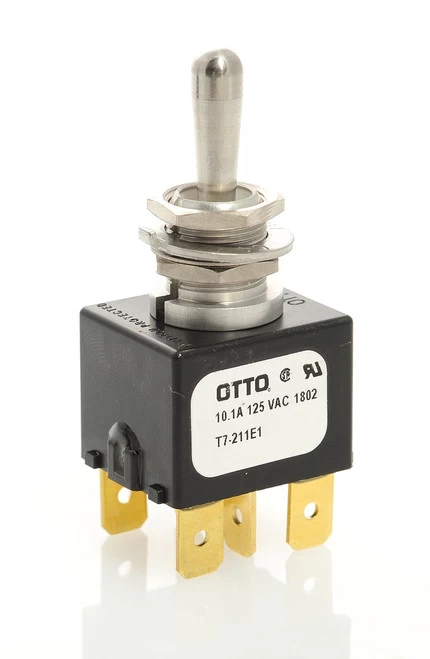

Otto Sealed Momentary Toggle Switch with Spade Terminals T7-211E1

• Double Pole
• Double Throw
• DPDT
• Momentary On – Off – Momentary On
• (On)-Off-(On)
• 3 Position
• Spring return to center off position
• Spring Loaded to Center Off Position
• 16 amps at 115 VAC
• 10 amps at 28 VDC
• 1/2 HP
• IP68S
• Withstands extreme shock & vibration

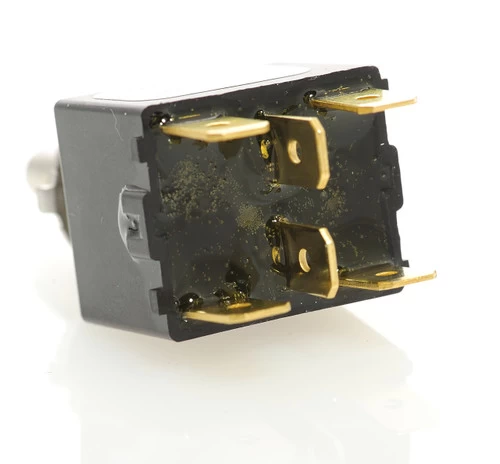

• Quick connect terminals (6)
• Hardware includes: 2 hex nuts, 1 lock washer & 1 key way washer
• Can be used with any of the Standard or Tall toggle boots: BOOTS

Data Sheet: T7-211E1



This switch is used in numerous applications from snow plows, agricultural and industrial applications where a rugged sealed toggle is required
