DH221LBSRG12 22 Mm Anti Vandal Sealed Latching Push Button Switch, 12 Volt Red Or Green Lighting Ability

Product

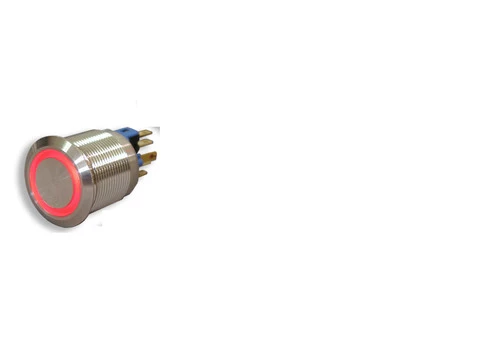

22 mm Illuminated Latching Push Button, 12 Volt Red or Green Lighting Ability

• 22 mm
• Latching Anti Vandal
• Push On, Push Off
• 2 amp at 24 VDC
• 2 amp at 125 VAC
• 1 Amp at 250 VAC
• 12 Volt  Red or Green Illumination (Both offered, can choose to wire either or both)
• IP65 Sealed
• Stainless Steel Finish
• SPDT
• Single Pole
• Double Throw
• 1 SPST NO – Normally Open & 1 SPST NC – Normally Closed
• Flush Actuator

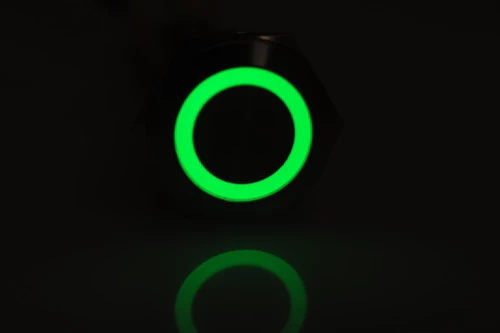

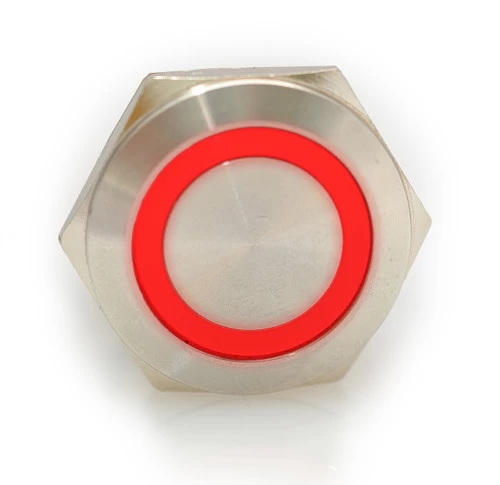

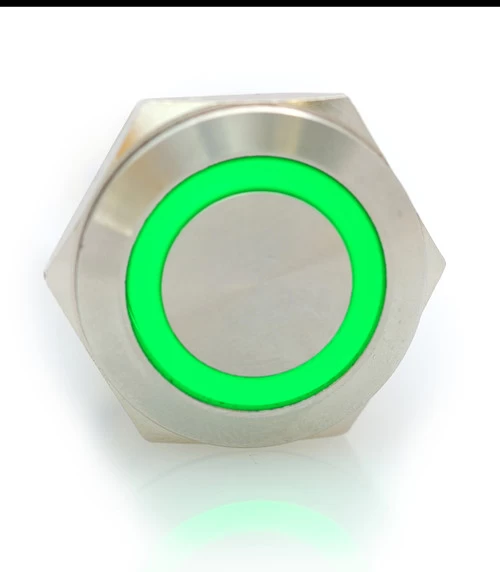

• Red or Green Ring Illumination
• Solder terminals

Data Sheet: DH221NBSRG12
